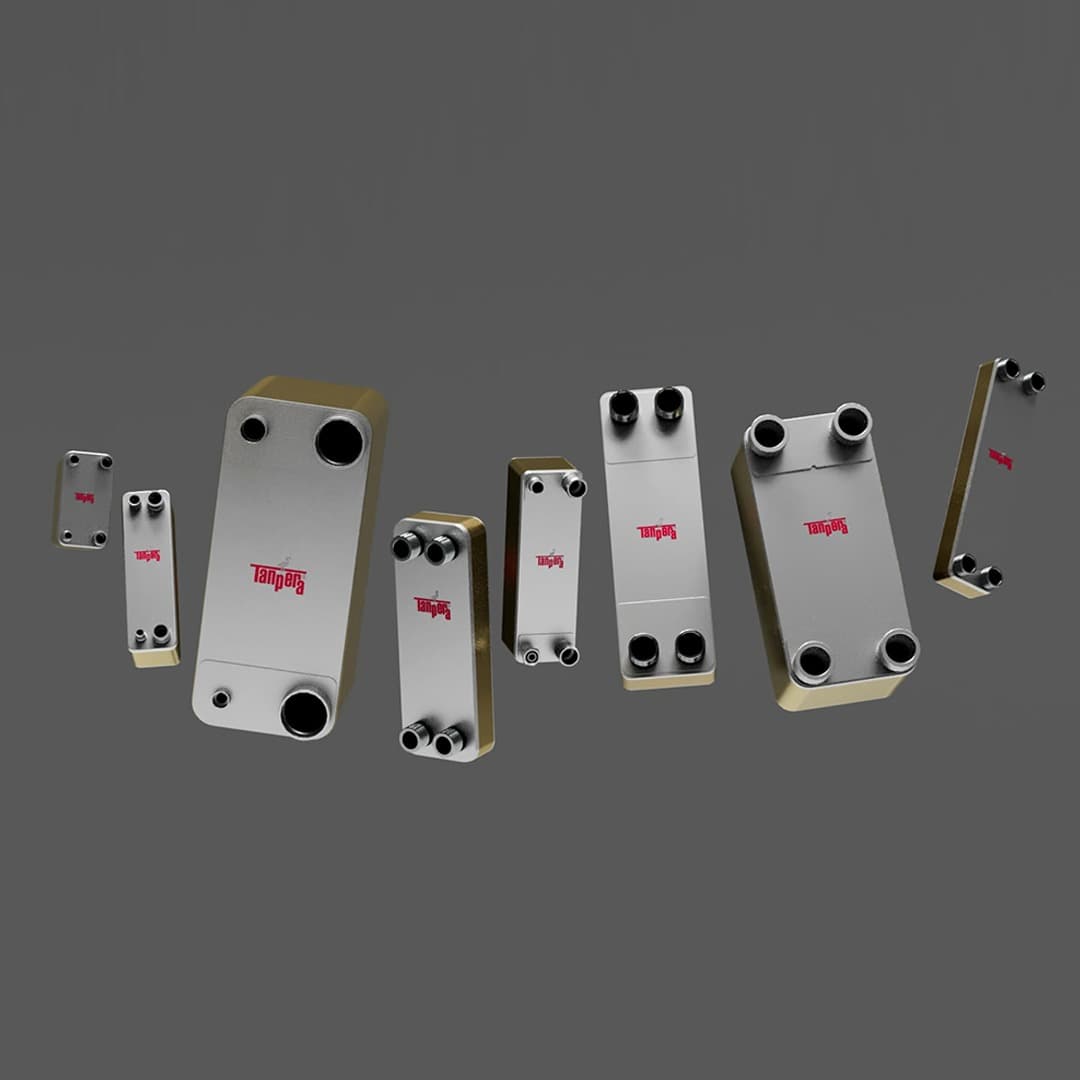

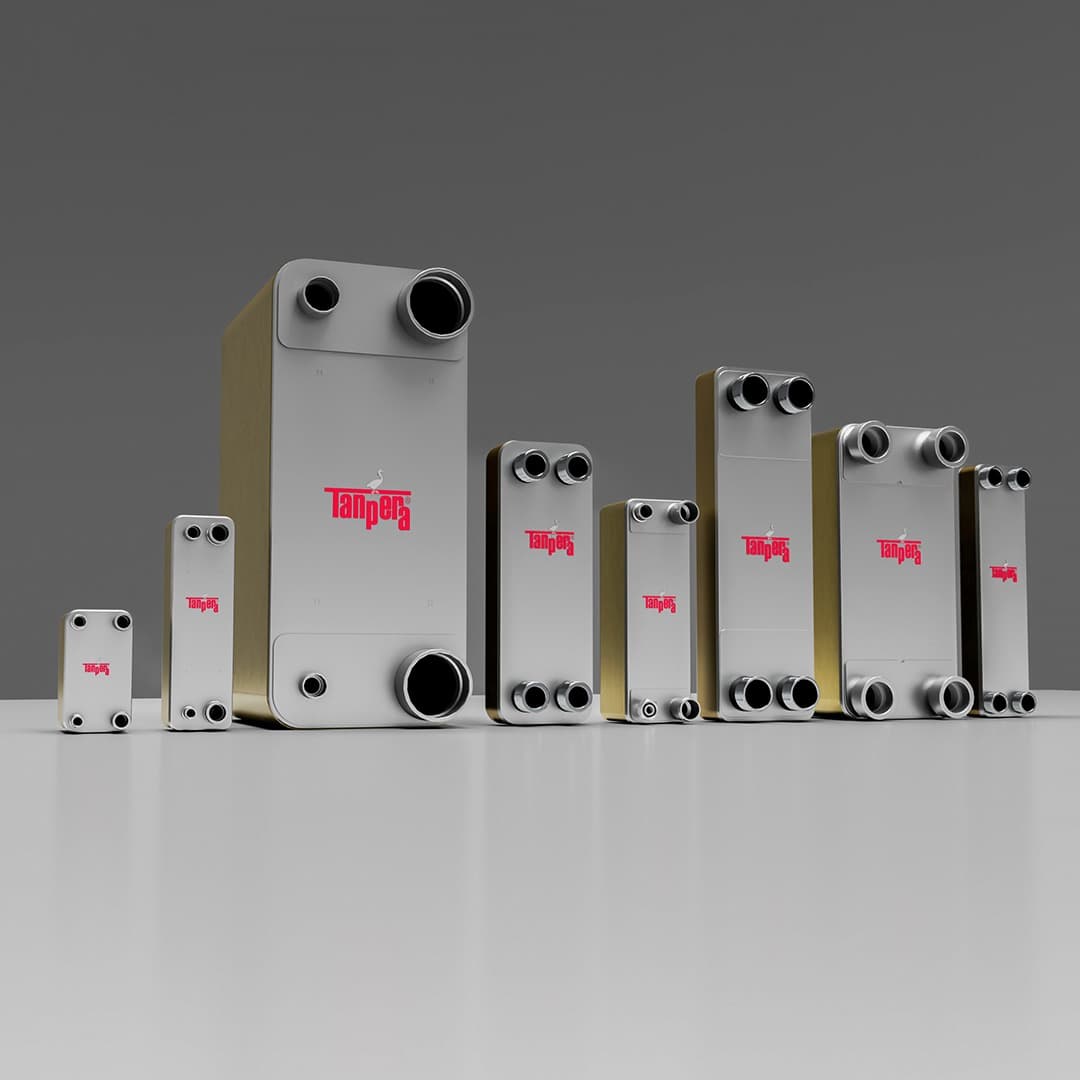

Copper Паяный пластинчатый теплообменник
Plate Heat Exchangers
High давление resistance and geometry suitable for tight spaces are especially advantageous in indoor здание монтажs and packaged unit применения. Tanpera brazed теплообменники are offered with material and capacity options suited to проект requirements.
About the Copper Паяный пластинчатый теплообменник
Паяный пластинчатый теплообменник Design
Производительность and Reliability
High давление resistance and geometry suitable for tight spaces are especially advantageous in indoor здание монтажs and packaged unit применения. Tanpera brazed теплообменники are offered with material and capacity options suited to проект requirements.
Key Features
- High sealing производительность with brazed plate joints and no gaskets.
- Compact geometry; suitable for secondary circuits, combi and domestic применения, and closed-circuit cooling.
- Efficient heat transfer in tight spaces with high давление resistance.
Монтаж and Пусконаладка
During пусконаладка, давление testing, flow adjustment, and температура control must be performed. The Tanpera technical team provides field поддержка and training.
Послепродажное обслуживание
Система эффективность is preserved over the long term through periodic inspection and производительность measurement.
Часто задаваемые вопросы
A Copper Паяный пластинчатый теплообменник is a compact, gasket-free теплообменник in which stainless steel plates are permanently joined with copper or nickel braze. The two fluids exchange heat in counterflow within the plate channels; because sealing is provided by the brazed joint, обслуживание demand is low. Especially preferred in secondary circuits, combi and domestic применения, and closed cooling lines.
Because no gasket is used, leakage risk is low, the body is very compact, and the монтаж footprint is minimal. High давление resistance makes them safe for refrigerant circuits and high-давление монтажs. As a drawback, plates cannot be disassembled, so очистка is done by chemical flushing or reverse flow; capacity increase is more limited than with gasketed models.
Plates are AISI 316 stainless steel; the braze joint is copper- or nickel-based. Connection nipples may be stainless steel or brass. Material combination is verified at the проект stage according to fluid chemistry and температура range.
Common in combi and domestic secondary circuits, chiller condenser/испаритель side circuits, heat pump системы, solar монтажs, and small-to-medium ОВиК проекты. Dimensions that fit tight spaces are an advantage in indoor здание монтажs.
Depending on model and braze type, operating давление up to 30 bar and a wide температура range can be поддержкаed. Refrigerant type in cooling circuits and maximum температура and давление in ОВиК применения should be checked in the проект design. Refer to the продукт technical data sheet for exact limits.
Flow rate, температура difference, and allowable перепад давления are the primary inputs. Because brazed теплообменники come with a fixed plate pack, correct model selection is critical. The Tanpera engineering team recommends a suitable model and connection size based on your application data.
Because there is no gasket, periodic gasket replacement is not required; filtration and water quality are important to prevent corrosion. On производительность drop, reverse flow or approved очистка решения can be used. Because the brazed body cannot be opened, heavy загрязнение may require planning a new unit.
You can download the English брошюра and user manual as PDF from the Documents tab on the продукт page. Up-to-date technical documents are published regularly in this area.
You can submit your проект details via the Quote Form on the продукт page or contact our sales team at sales@tanpera.com. Our engineering team will get in touch for расчёт and pricing based on your проект data.
