Бойлер со сменным змеевиком
Системы теплового аккумулирования
Серия Tanpera TSB передаёт тепло от котла, теплового насоса или солнца через змеевик в водопроводную воду; потоки не смешиваются.
Что такое бойлер со сменным змеевиком?
Серия Tanpera TSB передаёт тепло от котла, теплового насоса или солнца через змеевик в водопроводную воду; потоки не смешиваются.
What Is a Coil Бойлер?
Operating Principle

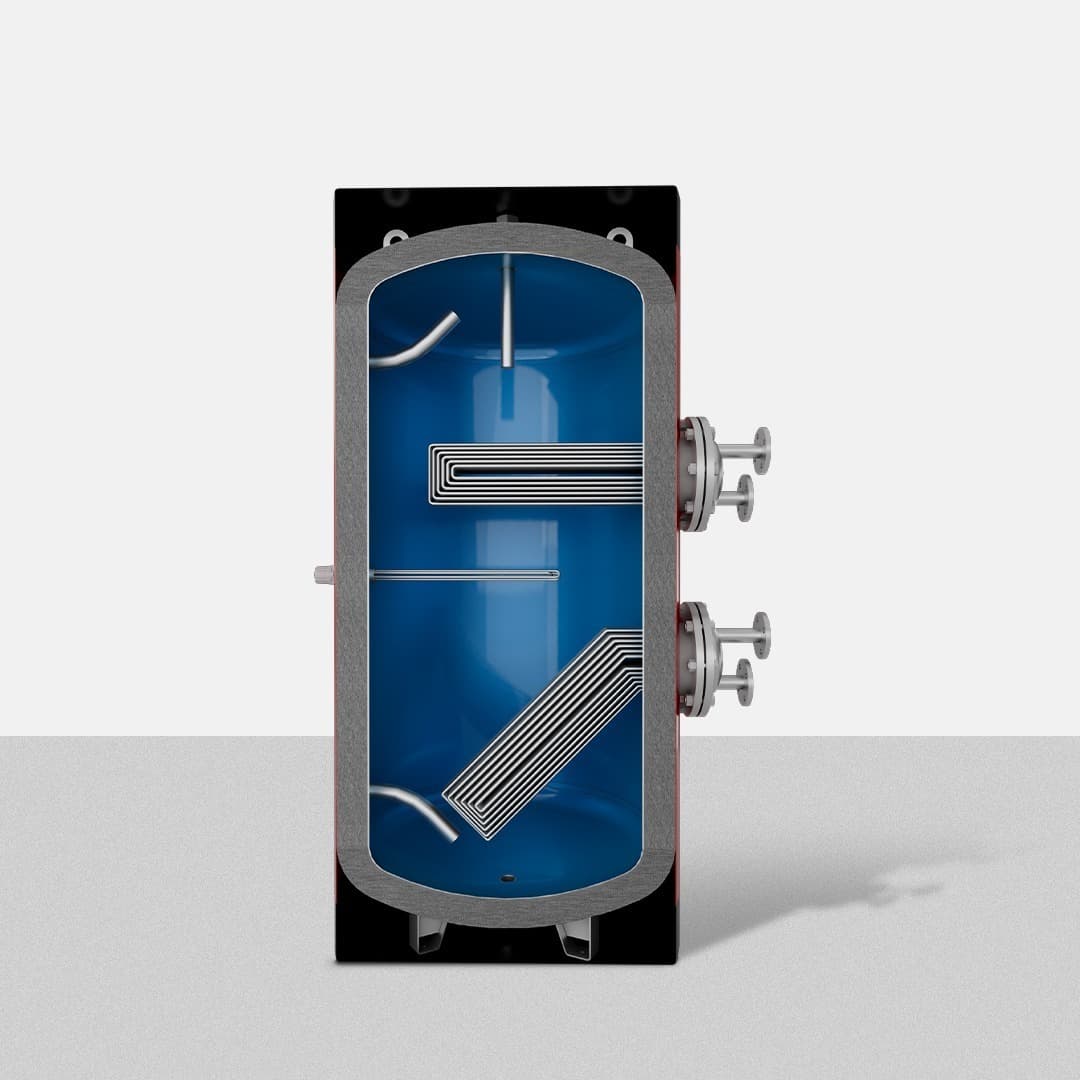

The coil surface transfers its heat to the domestic water in the tank; the cooled fluid returns to the source. Dual-coil (TDB) designs combine different energy sources for hybrid эффективность.
Advantages
Maximum энергоэффективность
It operates on a heat-recovery principle: instead of burning separate electricity or gas to produce hot water, it uses heat already generated in the бойлер, heat pump, or solar collector.
Fast, high-capacity heating
Optimized large-surface coils provide uninterrupted comfort even during simultaneous high demand in hotels, apartments, or sports facilities.
Hygienic and safe use
The smooth enameled inner surface reduces scale adhesion; a low-positioned coil design minimizes Legionella risk and provides homogeneous heat distribution.
Easy обслуживание
With an optional electric heater pocket, the unit can also be used like an electric бойлер in summer when the main бойлер is offline.
Key Features

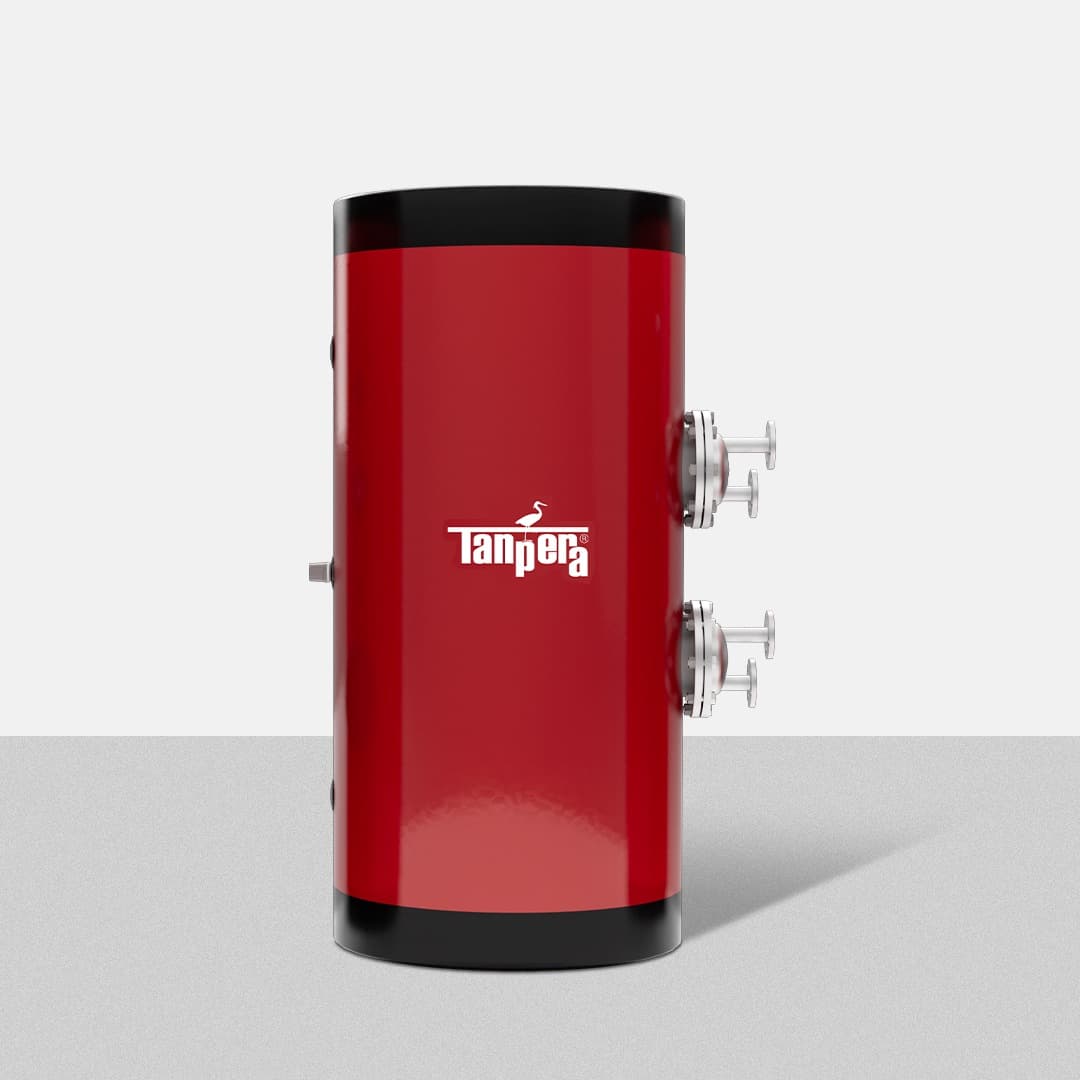

- TSB / TDB series: single coil 100–5000 L, dual coil 200–5000 L.
- Flanged replaceable coil — easy remove-and-fit for обслуживание, очистка, and renewal.
- S235JR construction; dual protection with DIN 4753-3 enamel + magnesium anode.
- Solar + бойлер hybrid connection capability on dual-coil models.
- High-density polyurethane insulation; Termowen or vinyl outer cladding.
- Storage 10 bar / coil 16 bar / coil температура 120 °C.
- Sensor pocket, thermometer, recirculation, and optional heater pocket.
- Design to TS 736 and TS EN 13445-3; pre-delivery 1.3× давление test.
Монтаж and Пусконаладка
During пусконаладка, давление testing, flow adjustment, температура setpoint, and (if applicable) solar/бойлер hybrid valving checks must be performed. The Tanpera technical team provides on-site поддержка and training.
Послепродажное обслуживание
The Tanpera сервис network supplies spare coils, magnesium anodes, flange gasket sets, sensors, and connection components throughout the проект life.
Our technical team works with проект teams for site пусконаладка, operator training, and fault response.
- Spare coil, anode, and gasket-set supply
- Periodic обслуживание and scale / sediment очистка planning
- Пусконаладка, training, and on-site техническая поддержка
- Производительность checks and operating recommendations
Часто задаваемые вопросы
Hot fluid from an external heat source (бойлер, heat pump, solar collector) circulates through the coil inside the tank and transfers heat indirectly to the mains water. The two fluids do not mix. The flanged coil can be removed for очистка or replacement; TSB/TDB models from 100–5000 liters offer high-capacity storage.
In fixed-coil бойлеры the coil is integrated with the tank and offers an economical first investment. In replaceable models the coil is removed via a flange; очистка, repair, or capacity change is much faster in hard-water conditions. The replaceable type is preferred in intensive-duty facilities that need frequent обслуживание.
TSB are single-coil бойлеры (100–5000 L). TDB are dual-coil (200–5000 L); the lower coil is typically connected to solar energy and the upper coil to the main бойлер for hybrid savings. Notation example: TANPERA-TSB 500/10.
Maximum storage operating давление is 10 bar, coil 16 bar, and maximum coil operating температура 120 °C. Every unit is tested at 1.3× operating давление before delivery.
DIN 4753-3 enamel coating provides a smooth hygienic surface; heating and domestic waters do not contact each other. A low-positioned coil leaves no cold zone, reducing bacterial growth risk; the magnesium anode provides additional corrosion protection.
Storage volume and peak draw durations are the basis. Бойлер volume is calculated from user/room count, unit energy need (Qhmax), diversity (Pn), and comfort (Pz) factors. Example: approximately a 1000 L single-coil бойлер for a 20-apartment estate. Tanpera engineering поддержкаs detailed расчёт.
Periodic magnesium anode inspection/replacement, tank очистка via the bottom flange, and coil очистка by removing it via the flange are recommended. In hard-water regions, softening or more frequent coil обслуживание should be planned.
You can download or view the English брошюра and user manual as PDFs from the Documents tab on the продукт page. Up-to-date technical documents are published regularly in this section.
Submit your проект details via the Quote Form on the продукт page, or contact our sales team at sales@tanpera.com. Our engineering team will contact you for storage volume, TSB/TDB selection, and coil расчёт.
