Shell & Plate теплообменники
Plate Heat Exchangers

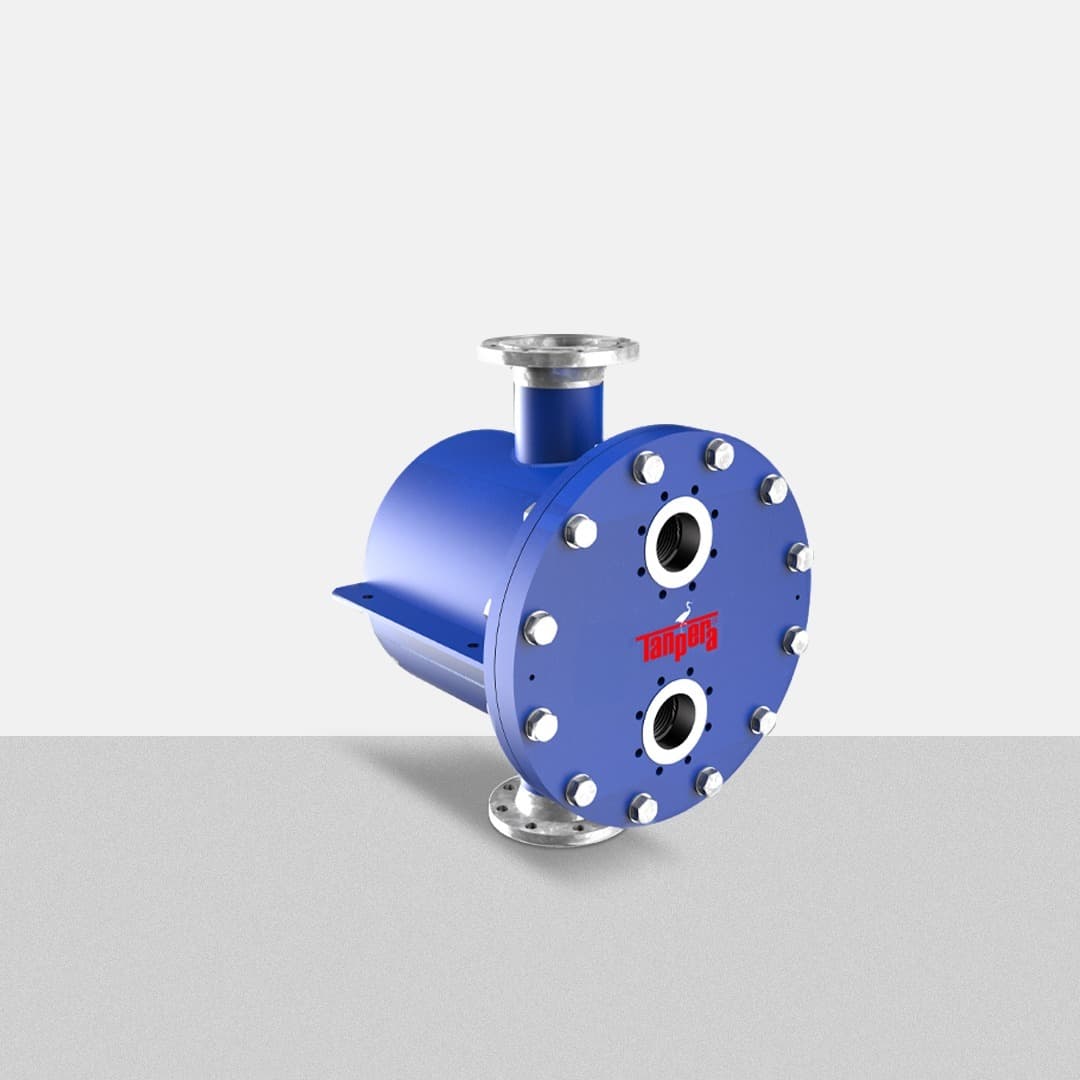

Plate coils placed within the core and shell provide reliable heat transfer under high температура and давление conditions.
About Теплообменники Shell & Plate
Plate coils placed within the core and shell provide reliable heat transfer under high температура and давление conditions.
Shell and Plate Architecture

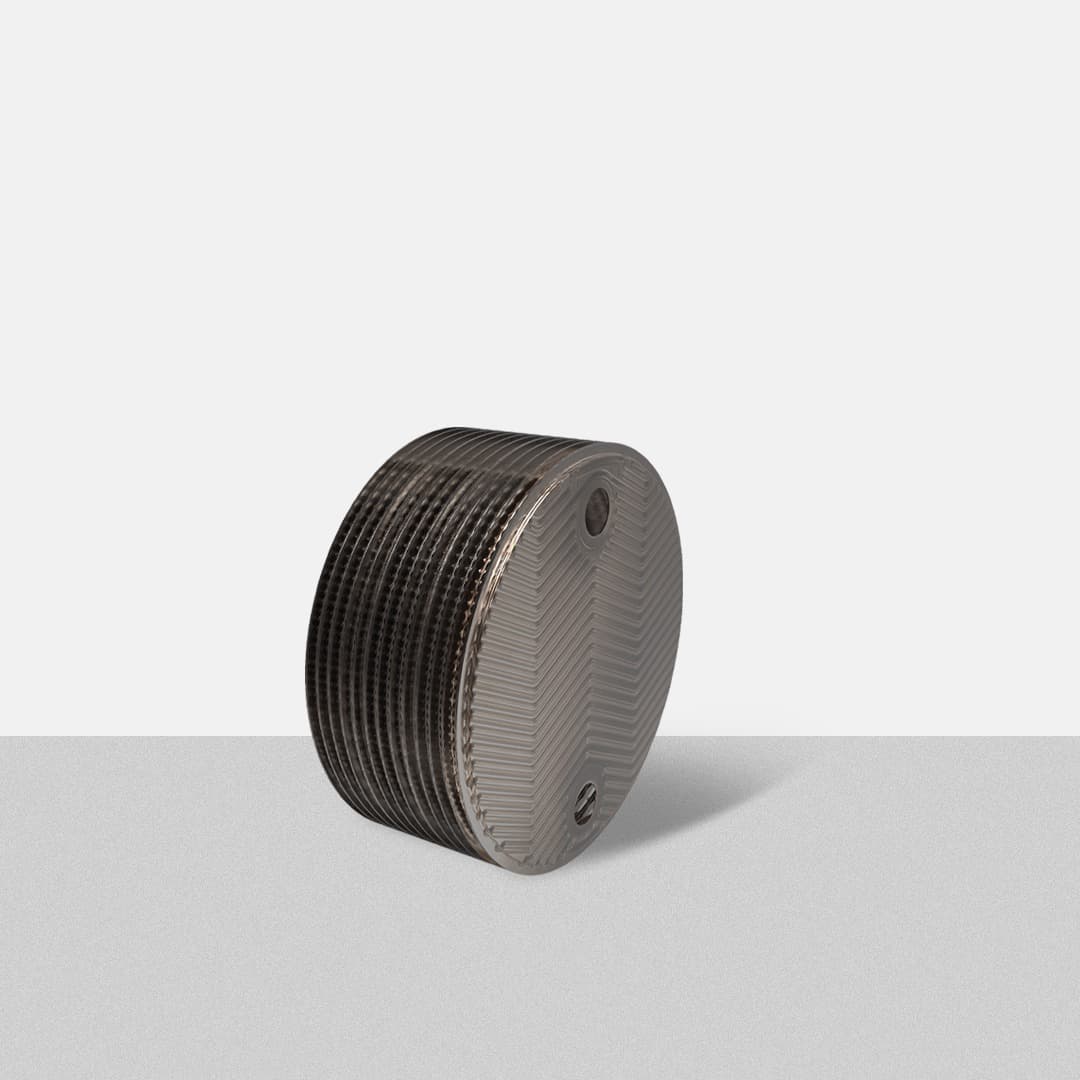

The cassette plate pack offers the advantage of a fully welded, gasket-free construction for процессes requiring high давление and температура. The plate-coil design promotes turbulent flow and increases heat transfer effectiveness.
Durability and Эффективность
The modular plate pack offers ease of обслуживание and очистка; preferred in petrochemical, heavy industry, and high-давление процесс применения.
Key Features
- High давление and температура resistance with shell-and-plate architecture.
- Wide channel design; low clogging risk with particulate and viscous fluids.
- Fully welded shell; gasket-free sealing advantage.
- Reliable heat transfer in petrochemical, fertilizer/ammonia synthesis, and heavy-industry процессes.
Монтаж and Пусконаладка
During пусконаладка, давление testing, flow adjustment, and температура control must be performed. The Tanpera technical team provides field поддержка and training.
Послепродажное обслуживание
Система эффективность is preserved over the long term through periodic inspection and производительность measurement.
Часто задаваемые вопросы
Теплообменники Shell & Plate are fully welded теплообменники in which fluids circulate in separate channels within a cassette plate pack placed inside the shell, exchanging heat. They provide reliable heat transfer under high давление and температура; wide channel geometry reduces clogging risk with particulate and viscous fluids.
Compared with gasketed plate теплообменники, Shell & Plate units operate more reliably at high давление and with aggressive fluids thanks to their fully welded, gasket-free construction. They can offer a more compact layout than shell-and-tube exchangers and are a more suitable alternative than gasketed plate types for particulate процесс fluids.
Plates and shell are typically AISI 304/316 stainless steel; duplex or проект-specific alloys are used for aggressive chemicals and high-температура применения. Material selection is based on fluid chemistry, температура, and давление profile.
They are common in petrochemical, fertilizer and chemical industry, heavy industry, wastewater heating, and power plant применения. Preferred for процессes requiring high давление and температура and for heating or cooling particulate/viscous fluids.
Процесс давление, температура, and fluid chemistry determine plate/shell material and design class. Fully welded Shell & Plate construction is preferred for high-давление and high-температура применения. The Tanpera engineering team recommends the appropriate давление–температура class and material selection based on your проект data.
Flow rate, температура, viscosity, particle size, design давление, and allowable перепад давления are taken into account. Plate area and shell size determine capacity. When you submit your проект data, a detailed расчёт report is prepared.
The modular plate pack improves access for обслуживание and очистка. A regular очистка program preserves производительность in dirty-fluid применения. Давление testing and plate-pack checks should be part of the periodic обслуживание routine.
You can download the English брошюра and user manual as PDF from the Documents tab on the продукт page. Up-to-date technical documents are published regularly in this area.
You can submit your проект details via the Quote Form on the продукт page or contact our sales team at sales@tanpera.com. Our engineering team will get in touch for расчёт and pricing based on your проект data.
